Inductive Proximity Switches

Description

M8, unshielded, SN=3mm, 10-30 VDC, NPN-NO, M8 Connector

Highlights

  • Three-wire
  • Increased range, not shielded
  • Range, 3mm
  • Short housing cable models
  • 200mA NPN
  • Housing stainless steel
  • Operation LED

Specifications

Nominal Switching Distance: 3 mm - unshielded
Nominal Voltage: 10 ÷ 30 VDC (-15 / +10%)
Residual Ripple: ≤ 10%
Hysteresis: < 10%
Max. Output Current: 200 mA
Residual Current: < 10 mA
Voltage Drop: < 1.2 V (I = 100 mA)
Operation LED: Yellow
Switching Frequency: 500 Hz
Start Up Delay: ≤ 75mS
Repeatability: ≤ 3%
Short Circuit Protection: Present (self-resetting)
Electric Protections: Against polarity reversal - inductive loads
Temperature Limits: -25 ÷ +70°C
Protection Degree: IP 67
Housing Material: Stainless-steel
Weight - K1 connector output - : 40g

Article Code

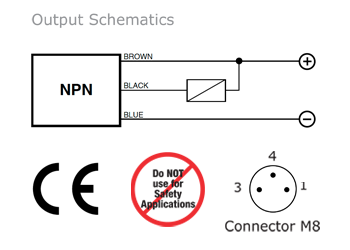

NPN - NO, 3-adrig

Recommended Connecting Cable

M8/3...
